Copper Ore

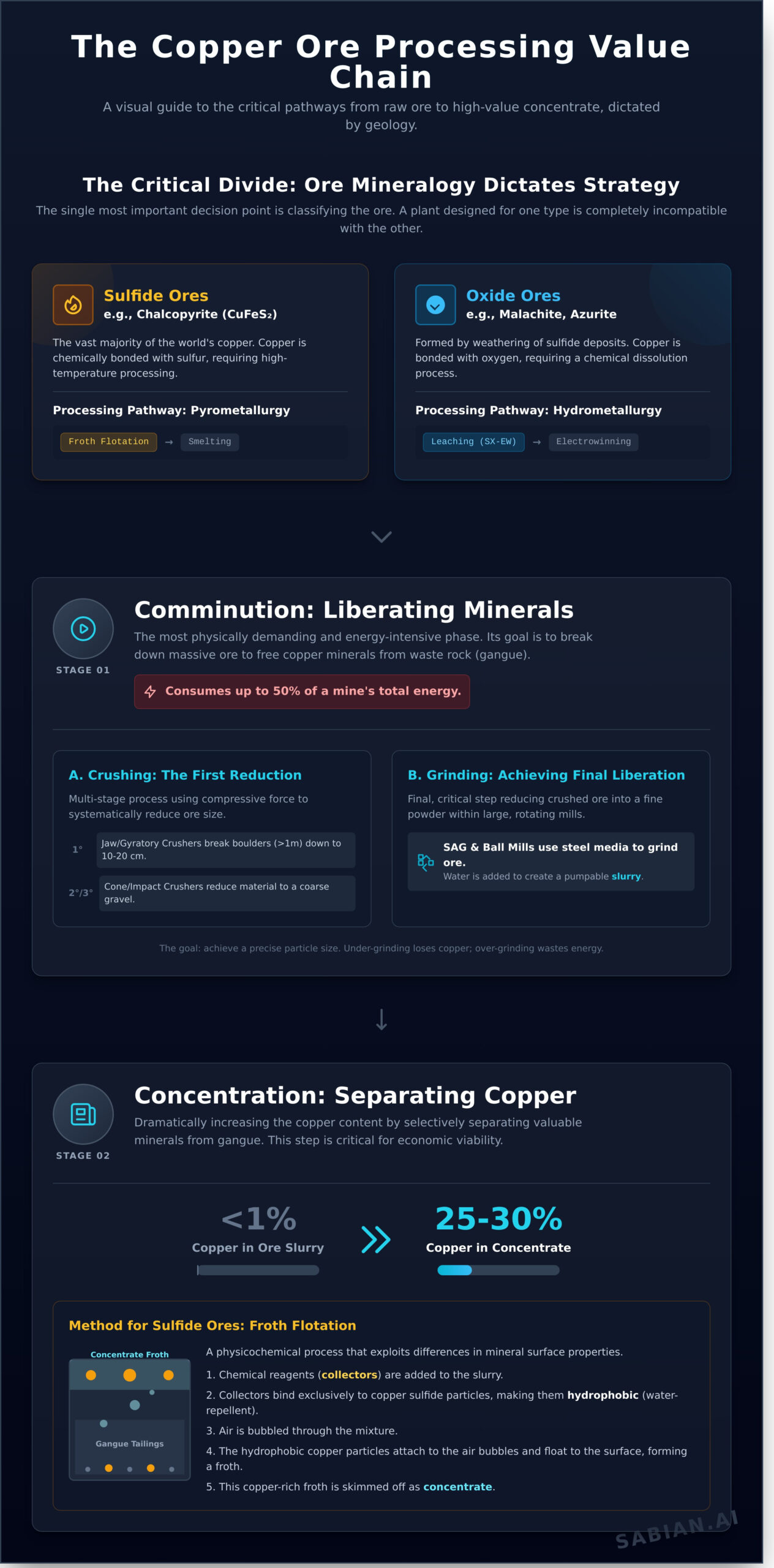

Processing: The Complete Guide from Mine to Metal
The journey from raw rock to refined copper is
a labyrinth of complex chemistry and immense machinery,
The journey from raw rock to refined copper is a labyrinth of complex chemistry and immense machinery, where industry jargon often obscures the path to profitability. If terms like flotation, leaching, and smelting seem impenetrable, or the vast value chain feels overwhelmingly technical, you are not alone. This guide is engineered to dismantle that complexity, providing a definitive roadmap through the entire copper ore processing value chain and translating industrial processes into strategic clarity.
We will dissect the core metallurgical pathways, explaining with precision why sulfide and oxide ores demand fundamentally different strategies. You will gain a logical framework for understanding each stage from comminution to electrowinning and the critical points where inefficiencies accumulate. Crucially, we will illuminate where predictive intelligence and advanced automation are not just improving but revolutionizing this foundational industry. Discover how data-driven optimization is unlocking unprecedented recovery rates, transforming a legacy process into one of foresight and control.
Fundamentals: What is Copper Ore and Why Does its Type Matter?
Copper ore is not simply rock containing copper; it is a geological deposit where the concentration of copper bearing minerals is sufficient to make extraction economically viable. The primary determinant of this viability is the **ore grade **the percentage of copper within the rock. A high-grade deposit can tolerate higher processing costs, whereas low grade ores demand extreme efficiency. However, before grade is considered, the fundamental mineralogy of the ore dictates the entire technological pathway for extraction.
This initial classification-sulfide versus oxide is the single most critical decision point in the entire copper ore processing flowsheet. It defines the required capital investment, operational complexity, and environmental footprint, bifurcating the industry into two distinct technological domains.
Sulfide Ores (e.g., Chalcopyrite)
The vast majority of the world’s primary copper resources are sulfide ores, where copper is chemically bonded with sulfur. Chalcopyrite (CuFeS₂) is the most prevalent of these minerals. Extracting copper from this stable bond requires a multi-stage pyrometallurgical approach, beginning with froth flotation to physically separate and concentrate the copper sulfide minerals, followed by high-temperature smelting to chemically liberate the metal.
Oxide Ores (e.g., Malachite, Azurite)
Formed by the weathering and oxidation of primary sulfide deposits, oxide ores like malachite and azurite are typically found closer to the surface. In these minerals, copper is bonded with oxygen, a chemical structure unresponsive to flotation. Instead, extraction relies on hydrometallurgy-a process of chemical dissolution using a leach solution (typically sulfuric acid) to dissolve the copper for recovery via electrowinning (SX-EW).
This fundamental divergence means a processing plant designed for sulfides is entirely incompatible with oxides, and vice versa. Accurate ore characterization is therefore non-negotiable. Understanding this division is the foundational principle of the entire copper extraction process, as any error at this stage cascades into catastrophic operational and financial failure. The selection between pyrometallurgy and hydrometallurgy is not a choice but a mandate dictated by geology.
Stage 1: Comminution – Liberating Minerals Through Crushing and Grinding
Comminution represents the most physically demanding and energy-intensive phase of the entire copper ore processing circuit. Its primary objective is mechanical liberation: breaking down massive, run of mine ore boulders to free the valuable copper-bearing minerals from the surrounding non-valuable rock, known as gangue. This foundational stage in copper processing is a brute-force operation, consuming up to 50% of a mine’s total energy expenditure. The efficiency achieved here directly dictates the potential for downstream recovery; an improper grind size guarantees suboptimal yields and economic losses.
Crushing: The First Mechanical Reduction
The comminution journey begins with multi-stage crushing. This process systematically reduces particle size through compressive force. It typically involves:
-
Primary Crushing: Massive jaw or gyratory crushers receive ore directly from the mine, breaking boulders that can be over a meter in diameter down to approximately 10-20 centimeters.
-
Secondary & Tertiary Crushing: The output from the primary circuit is fed into cone or impact crushers, which further reduce the material to a coarse, gravel-like consistency, preparing it for the final grinding stage.
Each stage is engineered to efficiently handle a specific size range, ensuring a controlled reduction before the more energy costly grinding phase.
Grinding: Achieving Final Liberation
Grinding is the final and most critical step of comminution, tasked with reducing the crushed ore into a fine powder. This is predominantly accomplished in large, rotating cylindrical vessels like Semi Autogenous Grinding (SAG) mills and ball mills. These mills use steel balls or rods as grinding media to achieve the target particle size through impact and abrasion. Water is added during this process, creating a slurry a pumpable mixture of fine mineral particles and water ready for flotation.
The central challenge here is achieving a precise particle size distribution. Under-grinding fails to liberate the copper minerals from the gangue matrix, leading to poor recovery. Conversely, over grinding wastes immense energy and can create ultra fine particles ("slimes") that are difficult to process, also hampering recovery rates. This delicate balance makes grinding a mission critical control point in copper ore processing.
Stage 2: Concentration – Separating Copper from Gangue
Following comminution, the milled ore, which typically contains less than 1% copper, enters the concentration stage. The primary objective is to dramatically increase the copper content by selectively separating valuable copper-bearing minerals from the non-valuable rock, or gangue. This step is mission-critical for the economic viability of the entire operation, creating a ‘concentrate’ with copper content often exceeding 25-30%. The success of this phase in copper ore processing is quantified by two key metrics: recovery rate (the percentage of copper recovered from the ore) and concentrate grade (the purity of the final product).
The specific concentration pathway is dictated entirely by the ore’s mineralogy. This divergence creates two distinct processing streams: pyrometallurgy for sulfide ores and hydrometallurgy for oxide ores. The selection of a specific pathway is a critical decision, with various copper processing methods available depending on the unique chemical and physical properties of the deposit.
For Sulfide Ores: Froth Flotation
Froth flotation is the dominant method for concentrating sulfide ores like chalcopyrite. This advanced physicochemical process exploits differences in the surface properties of minerals. Chemical reagents are introduced into a slurry of milled ore and water. Collectors bind to the surface of copper sulfide particles, rendering them hydrophobic (water-repelling), while frothers stabilize air bubbles. When air is injected into the mixture, the hydrophobic copper particles attach to the bubbles and rise to the surface, forming a mineral-rich froth. This froth is then skimmed off as the copper concentrate, leaving the gangue behind.
For Oxide Ores: Leaching and Solvent Extraction (SX)
Oxide ores, such as malachite and azurite, are not amenable to flotation and require a chemical approach. The process begins with heap leaching, where a weak sulfuric acid solution is percolated through large piles of crushed ore. The acid selectively dissolves the copper, creating a copper rich solution known as the pregnant leach solution (PLS). This PLS then undergoes Solvent Extraction (SX), a highly selective purification step. An organic reagent is mixed with the PLS to extract copper ions, transferring them from the aqueous solution to the organic one. This step purifies and dramatically concentrates the copper, resulting in a rich electrolyte solution ready for the final recovery stage.
Stage 3: Purification – Creating High-Purity Copper Cathodes
The final, critical phase of copper ore processing is purification. This stage transforms the concentrated copper intermediate into a final product of 99.99% purity, known as a copper cathode. The technological pathway is dictated entirely by the preceding concentration method, diverging to handle either solid sulfide concentrates or copper-rich liquid solutions. Each route employs sophisticated metallurgical techniques to achieve the extreme purity required for industrial and technological applications.
For Sulfide Concentrates: Smelting and Refining
Solid concentrates from flotation undergo pyrometallurgy-a high-temperature smelting process. The concentrate is melted in a furnace, allowing impurities like iron and sulfur to be separated as slag and gas. This yields a molten mixture called copper matte, which is approximately 98-99% pure. This matte is further refined in an anode furnace to eliminate residual sulfur before being cast into impure copper anodes. The final step is electrorefining, where these anodes are submerged in an acidic electrolyte and an electric current causes the pure copper to selectively plate onto a cathode, achieving the target 99.99% purity.
For Oxide Solutions: Electrowinning (EW)
In contrast, the hydrometallurgical route utilizes electrowinning (EW) to extract copper from the rich electrolyte produced during solvent extraction (SX). This copper laden solution is pumped into an electrolytic cell where a direct electric current is applied. Copper ions are drawn from the solution and deposited as an ultra-pure layer onto stainless steel cathode blanks. This highly efficient process directly produces 99.99% pure copper cathodes without intermediate melting stages. The remaining ‘spent’ acid, now lean in copper, is recycled back to the heap leaching stage, creating a closed-loop system that maximizes resource utilization.
Both purification pathways are energy-intensive and demand extreme precision to manage chemical balances and thermal dynamics. Optimizing these complex circuits is a primary challenge in modern copper ore processing. Predictive intelligence platforms, such as those developed by AI for Critical Minerals, are becoming essential tools for enhancing the efficiency and output of these critical final-stage operations.
The Intelligence Layer: AI-Driven Optimization in Copper Processing
Traditional copper ore processing operates against persistent headwinds: volatile energy costs, excessive reagent consumption, and inherent process instability. These challenges place a hard ceiling on efficiency and erode margins. The paradigm is shifting. Modern operations are now deploying an intelligence layer, leveraging vast operational data and AI to transform process control from a reactive discipline into a proactive, predictive strategy. The objective is clear: maximize copper recovery while systematically minimizing cost and environmental footprint.
Optimizing Comminution and Flotation
AI-driven models analyze incoming ore characteristics-such as hardness, mineralogy, and grade to predict and implement optimal settings for crushers and SAG mills in real time. In the flotation circuit, machine vision and advanced sensors continuously monitor froth properties, allowing AI to automate reagent dosage with surgical precision. This dynamic control directly reduces energy consumption in comminution and minimizes chemical waste, increasing overall metal recovery.
Stabilizing Hydrometallurgical Circuits
The chemical complexity of hydrometallurgical circuits, like leaching and solvent extraction (SX), makes them prone to instability. Predictive intelligence models can forecast and stabilize critical chemical balances, preventing costly process upsets that compromise throughput and final cathode quality. Furthermore, AI powered predictive maintenance algorithms monitor key equipment like pumps and agitators, minimizing unplanned downtime and securing operational continuity.
The Future: The Fully Autonomous Plant
The ultimate evolution is the fully autonomous plant, orchestrated by a ‘digital twin’-a dynamic, virtual replica of the entire physical operation. AI leverages this model to simulate the impact of potential changes and recommend system wide adjustments for holistic optimization. This transcends improving individual stages, enabling a level of integrated efficiency previously unattainable in complex mineral processing. Discover how predictive intelligence is reshaping mining.
The Intelligence Layer: Optimizing the Future of Copper Processing
The journey from raw ore to high-purity cathode is a testament to sophisticated engineering. We’ve seen that transforming copper bearing rock into valuable metal involves a precise sequence of physical and chemical stages, from comminution and concentration to final purification. However, mastering the traditional mechanics of copper ore processing is no longer the final frontier. The future belongs to operators who can predict, adapt, and execute with unparalleled precision at every point in the value chain.
This is where predictive intelligence becomes mission critical. Sabian.ai provides a specialized AI platform built for critical minerals, delivering predictive intelligence across the entire value chain to transform operational efficiency, maximize recovery, and minimize waste.
Harness predictive intelligence for your mining operations.
Embrace the next evolution in mineral extraction and unlock unprecedented value from every ton of ore.
Frequently Asked Questions
What is a copper recovery rate and why is it important?
The copper recovery rate is the percentage of copper successfully extracted from the ore relative to the total amount present. It is a critical metric for operational viability. A higher recovery rate directly translates to increased revenue and superior resource efficiency, making it a primary focus for optimization. Even a fractional percentage increase can significantly impact the profitability of a mining operation, especially when processing vast tonnages of low-grade ore.
How much energy and water does copper processing consume?
Copper processing is resource-intensive. Comminution crushing and grinding the ore-can account for over 50% of a mine’s total energy consumption, often ranging from 15-25 kWh per tonne of ore. Water usage is also substantial, with typical operations requiring 0.5 to 1.5 cubic meters of water per tonne of processed ore. These figures underscore the critical need for efficiency gains to mitigate both operational costs and environmental impact.
What are tailings and how are they managed?
Tailings are the finely ground rock and mineral waste remaining after the valuable copper has been extracted. Effective management is a critical safety and environmental imperative. Common strategies include storing the slurry in engineered tailings dams, dewatering it for ‘dry stacking,’ or mixing it with cement to create a paste for backfilling underground voids. The objective is to ensure long term physical and chemical stability, preventing environmental contamination and structural failure.
How does the initial ore grade impact the entire processing operation?
Initial ore grade is a fundamental driver of an operation’s entire economic and logistical framework. Declining ore grades mean that significantly more rock must be mined, crushed, and processed to yield the same amount of copper. This directly escalates energy consumption, water usage, and the volume of tailings generated per unit of production. Therefore, adapting the copper ore processing circuit to ore grade variability is paramount for maintaining profitability.
What are the main by-products of copper smelting and refining?
The pyrometallurgical stages of copper production yield several valuable by-products. The most significant is sulfuric acid, captured from sulfur dioxide emissions. Precious metals like gold and silver are also commonly recovered from the anode slimes during electrorefining. Other economically important elements can include molybdenum, selenium, tellurium, and platinum-group metals, depending on the specific composition of the initial copper concentrate.
Can AI really make a significant difference in a century-old process?
Yes. AI introduces a level of predictive intelligence previously unattainable. By analyzing vast operational datasets in real-time, AI-driven systems optimize grinding circuits for energy efficiency, predict equipment failures before they occur, and dynamically adjust reagent dosing in flotation for maximum recovery. This transforms a traditionally reactive process into a predictive, highly optimized operation, unlocking significant gains in efficiency, sustainability, and profitability for modern mining.
